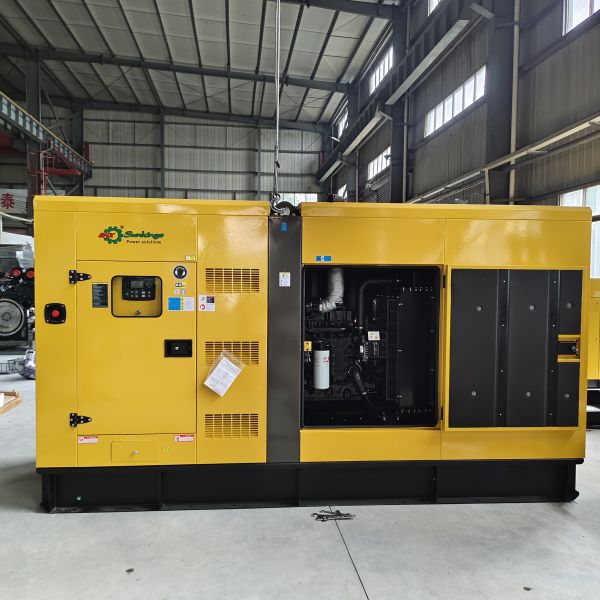

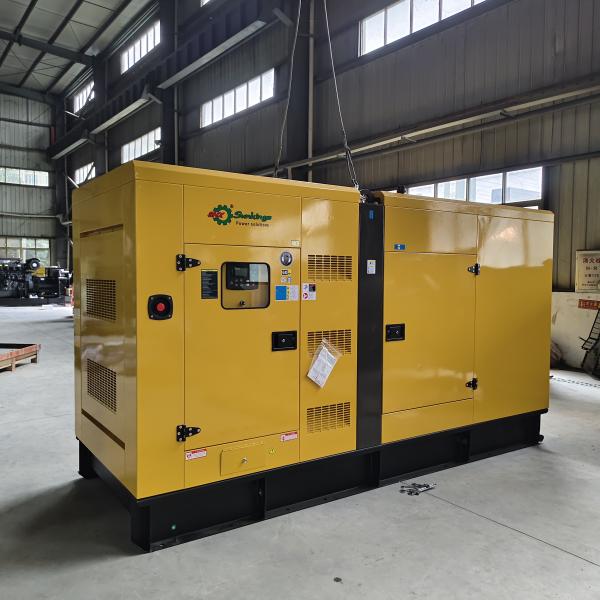

200kw Mega Silent Generator 250kva Cummins Generator Low Noise Diesel Generator
SHX Soundproof Generator Set Features:
A new kind of acoustic material is used as pugging, noise reducing return-flow wind tunnel is used as
generator set's ventilation system, and louver is installed in the window to prevent rains and other intruders.
High efficiency silencer with double level structure and another silencer between two levels keep the noise
at the lowest level. The box is modular structure with indicator and maintenance doors which make installation,
operation and maintenance very convenient. Benefited from the special design, medium low noise diesel generator
set's noise can be as low as 75dB (A) (at LP7m). Fuel tank can be installed on it according to customer needs.
Genset Specifications
| Genset model | SCF275 |
| Genset rated power | 200KW / 250KVA |
| Rated voltage | 400V (adjustable) |
| Rated current | 361 Amps |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 3600×1350×2000 |
| Weight (kg) | 2800 |
Engine Specifications
| Diesel Engine |
| Brand | DCEC CUMMINS |
| Model | 6LTAA8.9-G2 |
| Engine structure | 6 cylinders vertical in line, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 8.9 |
| Bore×Stroke(mm) | 114×145 |
| Compression ratio | 16.6: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤197 |
| Lube capacity(L) | 27.6 |
Alternator Specifications
| Alternator |
| Brand | Leroy Somer |
| Model | TAL-A46-E |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Continuous Generator
These generators operate year-round and are usually located in areas far away from the power grid or near
industrial and mining enterprises to meet the needs of construction, production and domestic electricity.
At present, in the area with more developed economy, because the construction of electric power network is
less than the power demand of users, the commonly used diesel generator set with short construction cycle is
set up to meet the needs of users. This type of generator has a relatively large capacity, provides continuous
power supply for unsteady loads, has no limit on the duration of continuous operation, and allows one hour of
over-load power supply for a period of 12 hours.The overload capacity is 10% of the rated output power of diesel
generator set. Because of its long running time and heavy load, the allowable power relative to the limit power of
this unit is set to a lower point.
Supply Scope of silent generator
1.Standard tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
2.Brand-new engine, with start motor.
3.Brand new brushless alternator, single bearing, flange connection, IP21-23, H insulation class, with AVR.
4.Auto control panel, with LCD display.
5.Engine mounted battery-charging alternator.
5.Circuit Breaker, Exhaust Silencer
6.Radiator for 50°C ambient temperature and double-deck cooling, with fan guard and front guard.
7.Anti-vibration pads are fixed between engine/alternator and base frame, as to ensure the compete genset
running under stabilization.
8.Skid-mounted bottom Fuel tank - 8hrs continuous running for choice (bigger fuel tank by your demand under extra cost)
9.External recessed emergency stop button for extra safety
10.The colors & Brands by your requests
11.Optional choice: ATS (automatic transfer switch), battery charger of mains supply, fuel-water separator, water heater and
oil heater ( depends on using environment),fuel filter, oil filter, water filter and air filter, Parallel system for your choice.
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.
